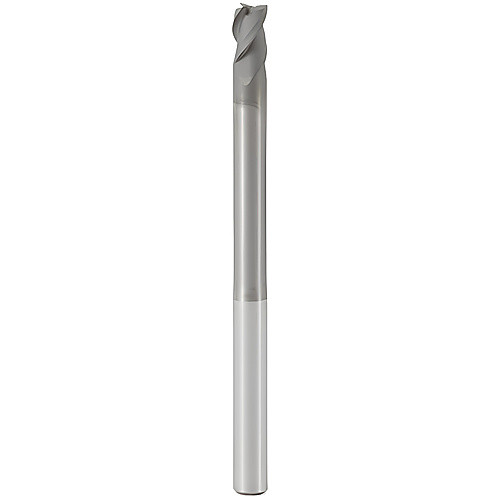

630V030R030-DIAMOND JABRO DIAMOND
SQ End Mill; 3 mm Dia. × 5 mm LOC × 3 mm Shank Dia. × 40 mm OAL ; 3 FL ; Carbide ; CVDDIA
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 3 mm | Flute Helix Angle (FHA) | 40 Degrees |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 5 mm | End Shape | Corner Radius |
| Overall Length (OAL) | 40 mm | Corner Radius (RE) | 0.3 mm |
| Cutting Edge Material | Carbide | Tool Type | Corner Radius |
| Coating | CVDDIA | Decimal Equivalent | 0.1181″ |
| Flute Count (NOF) | 3 | Corner Radius (RE) / Chamfer Width (CHW) | 0.3 mm |
Product Features
| Country of Origin | Netherlands |
Shipping Info
Package Weight
0.007
