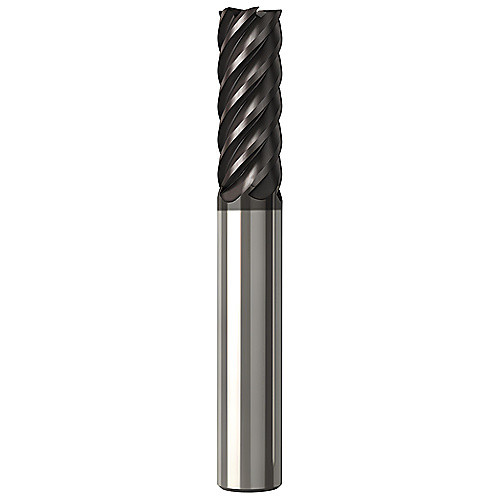

JS520140D2C.3Z6-NXT JABRO ENDMILL
SQ End Mill; 14 mm Dia. × 30 mm LOC × 14 mm Shank Dia. × 83 mm OAL ; 6 FL ; Carbide
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 14 mm | Flute Helix Angle (FHA) | 45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 30 mm | End Shape | Chamfer |
| Overall Length (OAL) | 83 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Cutting Edge Material | Carbide | Corner Chamfer Width (CHW) | 0.14 mm |
| Coating | NXT | Decimal Equivalent | 0.5512″ |
| Flute Count (NOF) | 6 | Series/List # | JS520 |
Product Features
| Country of Origin | Netherlands |
Shipping Info
Package Weight
0.375
