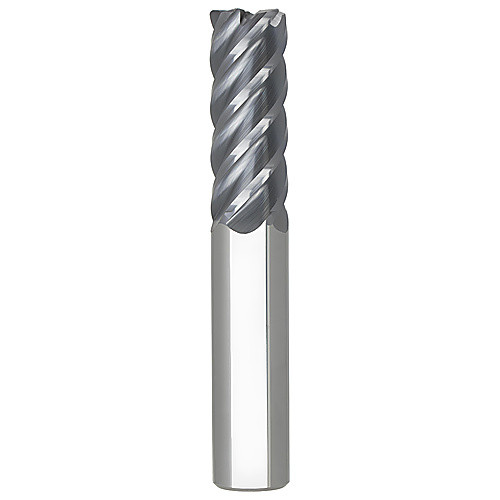

S545R-0.438-D1-R125.0-Z5 ALTIN
SQ End Mill; 7/16″ Dia. × 9/16″ LOC × 7/16″ Shank Dia. × 2-1/2″ OAL ; 5 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 7/16″ | Flute Helix Angle (FHA) | 45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 7/16″ | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 9/16″ | Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |
| Overall Length (OAL) | 2-1/2″ | Corner Radius (RE) | 1/8″ |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | AlTiN | Decimal Equivalent | 0.4375″ |
| Flute Count (NOF) | 5 | Corner Radius (RE) / Chamfer Width (CHW) | 1/8″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.181
