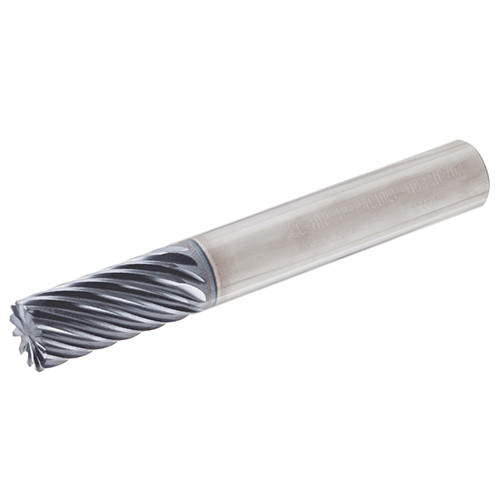

ECI-H8 312-630C312CF-H2.5 IC902
SQ End Mill; 0.312″ Dia. × 0.63″ LOC × 0.312″ Shank Dia. × 2-1/2″ OAL ; 8 FL ; 0.63″ LBS ; Carbide ; AlTiN

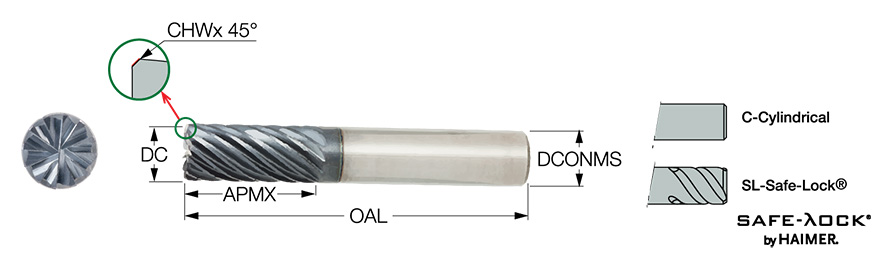

| Cutting Diameter (DC) | 0.312″ | Corner Chamfer Width (CHW) | 0.008″ |
| Connection Diameter Machine Side (DCONMS) | 0.312″ | Grade | IC902 |
| Depth of Cut Maximum (APMX) | 0.63″ | Tool Type | Solid carbide non center cutting endmills 90° |
| Overall Length (OAL) | 2-1/2″ | Maximum Feed per Tooth (fz(max)) | 0.0035 ″/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.0012 ″/tooth |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 8 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 45 Degrees | Style | Solid Carbide Non Center Cutting Endmills 90° |
| Shank Type | Round | Decimal Equivalent | 0.312″ |
| End Shape | Chamfer | Measurement Type | Inch |
| Usable Length (LU) | 0.63″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Helical Interpolation | Shouldering | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | 6-20 flute endmills with different helix and variable pitch, for CHATTERFREE high speed / trochoidal milling and finishing operations. | Country of Origin | Israel |
| Remarks | Can machine at radial width of cut (AE) of up to 0.06xDC |
Shipping Info
Package Weight
0.104
