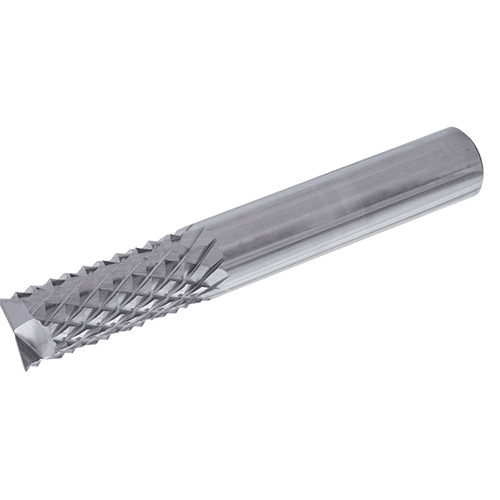

EPNC-C10 10-25C10F72 IC02
SQ End Mill; 10 mm Dia. × 25 mm LOC × 10 mm Shank Dia. × 72 mm OAL ; 0 mm RE ; 10 FL ; 25 mm LBS ; Carbide ; Uncoated

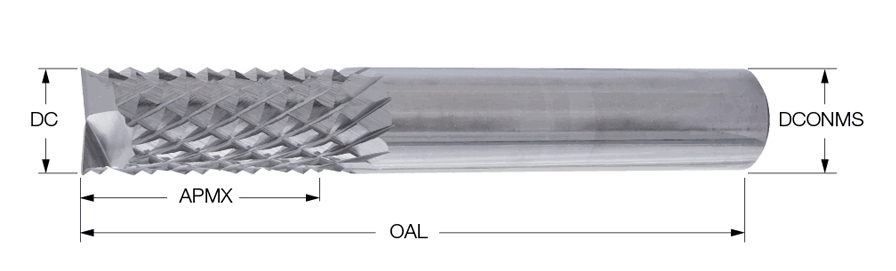

| Cutting Diameter (DC) | 10 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Grade | IC02 |
| Depth of Cut Maximum (APMX) | 25 mm | Tool Type | Solid Carbide Roughers |
| Overall Length (OAL) | 72 mm | Maximum Feed per Tooth (fz(max)) | 0.08 mm/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.02 mm/tooth |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 10 | Body Material | Carbide |
| Shank Type | Round | Style | Solid Carbide Roughers |
| End Shape | Corner Radius | Measurement Type | Metric |
| Usable Length (LU) | 25 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Cutting Diameter Tolerance | e8 |
| Application | | Counter Boring | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
| Corner Radius (RE) | 0 mm |
Product Features
| Family Description | Solid carbide endmill with special cutting edges, for machining different types of composite materials at high stock removal rates. Enables application of high feed and speed due to excellent chip and heat disposal. | Country of Origin | Israel |
Shipping Info
Package Weight
0.176
