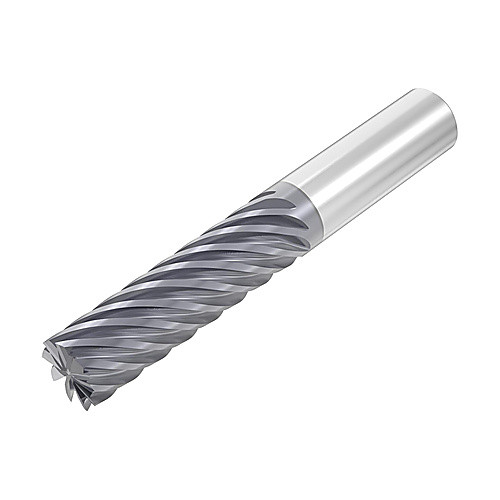

S938-1.000-D4-C012.0-Z9 ALTIN
SQ End Mill; 1″ Dia. × 4-1/8″ LOC × 1″ Shank Dia. × 7″ OAL ; 9 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1″ | Flute Helix Angle (FHA) | 38 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1″ | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 4-1/8″ | Applicable Material | | Super-Alloys / Titanium | |
| Overall Length (OAL) | 7″ | Corner Chamfer Width (CHW) | 0.012″ |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | AlTiN | Decimal Equivalent | 1″ |
| Flute Count (NOF) | 9 | Corner Radius (RE) / Chamfer Width (CHW) | 0.012″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
2.35
