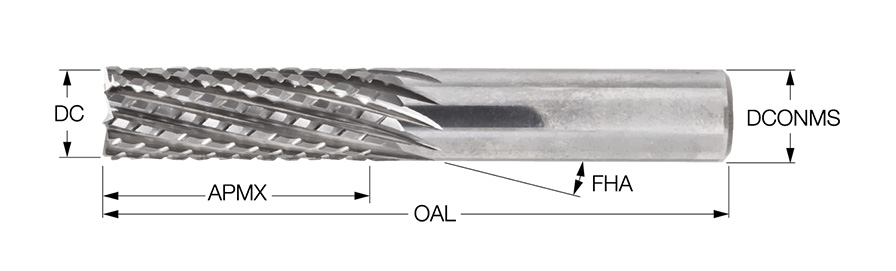

EPNI-F10 125-500C125F2.1 IC02

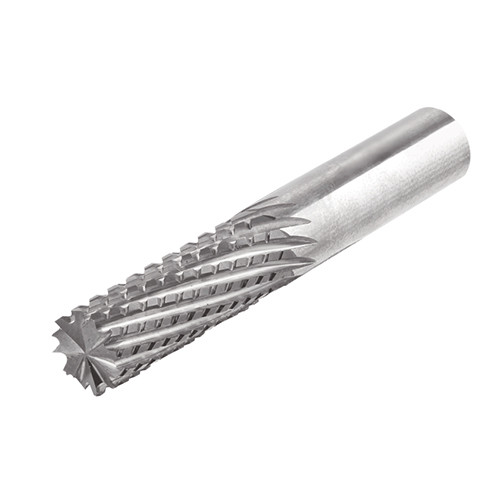

SQ End Mill; 1/8″ Dia. × 1/2″ LOC × 1/8″ Shank Dia. × 2.1″ OAL ; 0″ RE ; 10 FL ; 1/2″ LBS ; Carbide ; Uncoated
| Cutting Diameter (DC) | 1/8″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Grade | IC02 |
| Depth of Cut Maximum (APMX) | 1/2″ | Tool Type | Solid carbide non center cutting endmills 90° |
| Overall Length (OAL) | 2.1″ | Maximum Feed per Tooth (fz(max)) | 0.0008 ″/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.0004 ″/tooth |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 10 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 15 Degrees | Style | Solid Carbide Non Center Cutting Endmills 90° |
| Shank Type | Round | Decimal Equivalent | 0.125″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 1/2″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Cutting Diameter Tolerance | e8 |
| Application | | Edging | Helical Interpolation | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
| Corner Radius (RE) | 0″ |
Product Features
| Family Description | Solid endmills with a special edge configuration for machining different composite materials. | Country of Origin | Israel |
| Remarks | Coated tools available on request |
Shipping Info
Package Weight
0.021
