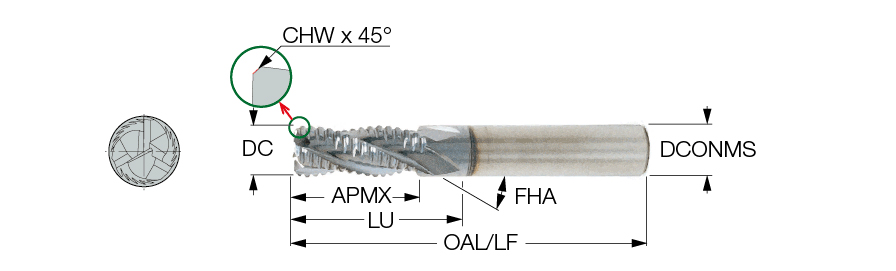

ERCI-E-3 750-1.25-W750-30 IC300
SQ End Mill; 3/4″ Dia. × 1-1/4″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 3 FL ; Carbide ; TiCN
| Cutting Diameter (DC) | 3/4″ | Application | Roughing | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Corner Chamfer Width (CHW) | 0.028″ |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 4″ | Grade | IC300 |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90 Degrees |
| Coating | TiCN | Maximum Feed per Tooth (fz(max)) | 0.009 ″/tooth |
| Flute Count (NOF) | 3 | Minimum Feed per Tooth (fz(min)) | 0.003 ″/tooth |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Shank Type | Weldon | Style | Solid Carbide Center Cutting Endmills 90° |
| End Shape | Chamfer | Decimal Equivalent | 0.75″ |
| Usable Length (LU) | 1.772″ | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Connection Code Machine Side (CCMS) | Weldon |
Product Features
| Family Description | 3 flute, 38° helix, medium length, solid carbide roughing endmills. Used for maximum stock removal on aluminum and other non ferrous materials. | Country of Origin | Korea |
Shipping Info
Package Weight
0.794
