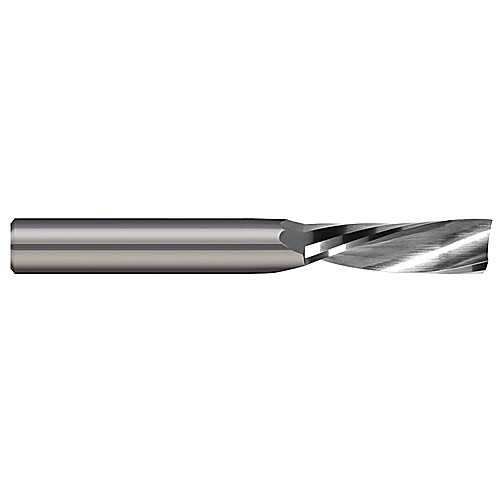

SFL-187-45 3/16 Dia. × 2 OAL Single Flute for Plastics and Composites Left Hand Spiral Right Hand Cut Routers - Uncoated
Square End Mill; 3/16″ Dia. × 5/8″ LOC × 1/4″ Shank Dia. × 2″ OAL ; 1 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 3/16″ | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Usable Length (LU) | 5/8″ |
| Depth of Cut Maximum (APMX) | 5/8″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 2″ | Length Group | 3.4D |
| Cutting Edge Material | Carbide | Flute Type | Helical |
| Coating | Uncoated | Body Material | Carbide |
| Flute Count (NOF) | 1 | Decimal Equivalent | 0.1875″ |
| Flute Helix Angle (FHA) | 25 Degrees | Measurement Type | Inch |
| Shank Type | Round | Single / Double End | Single End |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
2.20000
Package Width
.30000
Package Height
.30000
Package Weight
0.05
