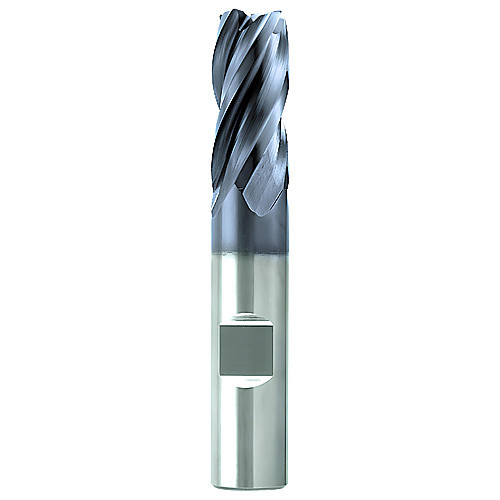

STR440-0.375-D2-R020.3-Z4 ALCRN
SQ End Mill; 3/8″ Dia. × 7/8″ LOC × 3/8″ Shank Dia. × 2-1/2″ OAL ; 4 FL ; Carbide ; AlCrN
| Cutting Diameter (DC) | 3/8″ | Flute Helix Angle (FHA) | Variable |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 7/8″ | Applicable Material | | Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 2-1/2″ | Corner Radius (RE) | 0.02″ |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | AlCrN | Decimal Equivalent | 0.375″ |
| Flute Count (NOF) | 4 | Corner Radius (RE) / Chamfer Width (CHW) | 0.02″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.15
