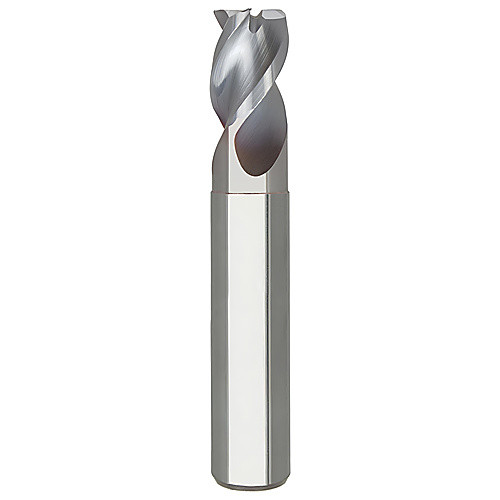

AN340-0.188-E2-R010.0-Z3 TICN
SQ End Mill; 3/16″ Dia. × 1/4″ LOC × 3/16″ Shank Dia. × 3″ OAL ; 0.01″ RE ; 3 FL ; Carbide ; TiCN
| Cutting Diameter (DC) | 3/16″ | Flute Helix Angle (FHA) | 40 Degrees |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 1/4″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 3″ | Corner Radius (RE) | 0.01″ |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | TiCN | Decimal Equivalent | 0.1875″ |
| Flute Count (NOF) | 3 | Corner Radius (RE) / Chamfer Width (CHW) | 0.01″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.031
