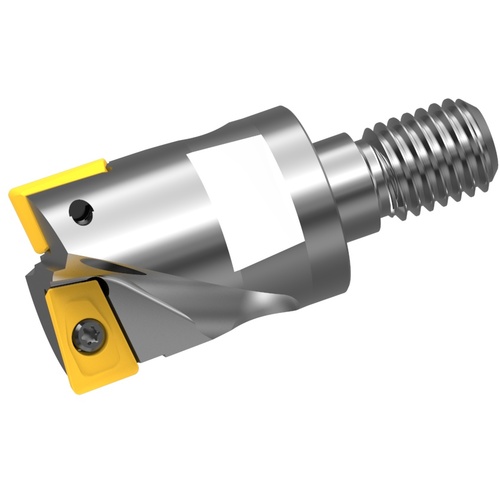

AQXR262M12A35 INDX EM
Indexable End Mill; 26 mm Dia. × 11.5 mm LOC × 12.5 mm Shank Dia. × 57 mm OAL ; 2 FL ; 90 Degrees ; Series AQX
| Cutting Diameter (DC/DCX) | 26 mm | Flute Count (NOF) | 2 |
| Cutting Diameter (DC) | 26 mm | Body Diameter (BD) | 23.5 mm |
| Cutting Item Count (CICT) | 2 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 11.5 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 57 mm | Series/List # | AQX |
| Connection Diameter Machine Side (DCONMS) | 12.5 mm | Measurement Type | Metric |
| Functional Length (LF) | 35 mm | Connection Retention Knob Thread Size (CRKS) | M12 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.999
