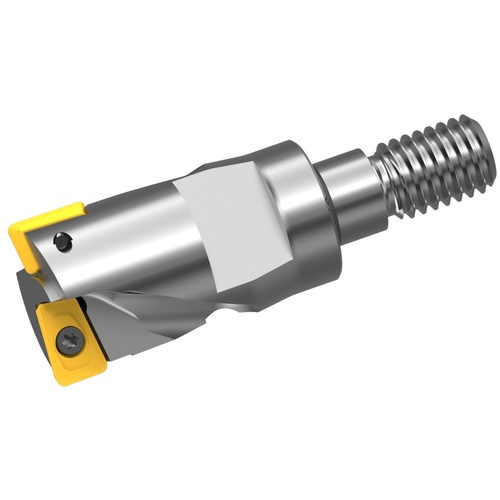

AQXR172M08A30 INDX EM
Indexable End Mill; 17 mm Dia. × 7.4 mm LOC × 8.5 mm Shank Dia. × 48 mm OAL ; 2 FL ; 90 Degrees ; Series AQX
| Cutting Diameter (DC/DCX) | 17 mm | Flute Count (NOF) | 2 |
| Cutting Diameter (DC) | 17 mm | Body Diameter (BD) | 14.5 mm |
| Cutting Item Count (CICT) | 2 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 7.4 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 48 mm | Series/List # | AQX |
| Connection Diameter Machine Side (DCONMS) | 8.5 mm | Measurement Type | Metric |
| Functional Length (LF) | 30 mm | Connection Retention Knob Thread Size (CRKS) | M8 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.999
