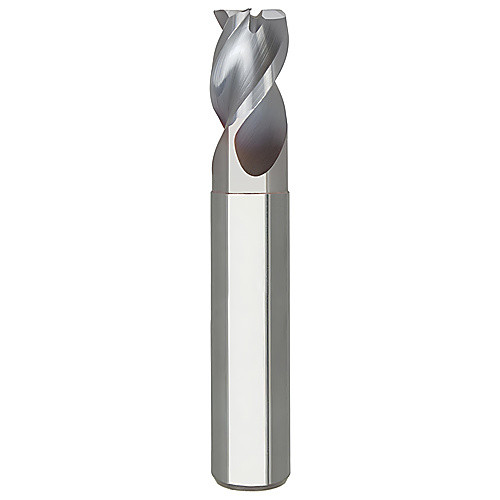

AN340-0.750-E2-R030.0-Z3 TICN
SQ End Mill; 3/4″ Dia. × 1″ LOC × 3/4″ Shank Dia. × 5″ OAL ; 0.03″ RE ; 3 FL ; Carbide ; TiCN
| Cutting Diameter (DC) | 3/4″ | Flute Helix Angle (FHA) | 40 Degrees |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 1″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 5″ | Corner Radius (RE) | 0.03″ |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | TiCN | Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 3 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.001
