APX4000R282SA25ELA EM

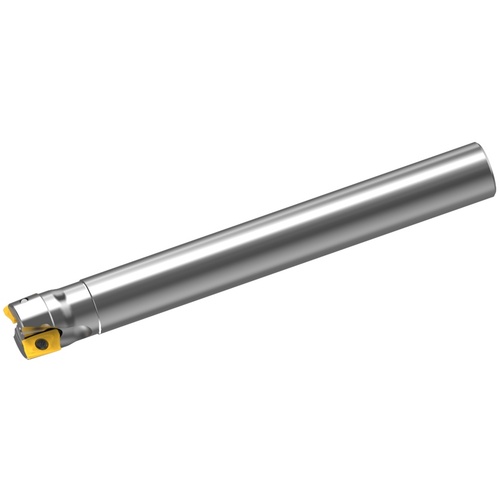

Indexable End Mill; 28 mm Dia. × 15 mm LOC × 25 mm Shank Dia. ; 2 FL ; 90 Degrees ; Series APX4000
| Cutting Diameter (DC/DCX) | 28 mm | Functional Length (LF) | 220 mm |
| Cutting Diameter (DC) | 28 mm | Flute Count (NOF) | 2 |
| Cutting Item Count (CICT) | 2 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 15 mm | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 9 Degrees | Series/List # | APX4000 |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Measurement Type | Metric |
| Head Length (LH) | 35 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.999
