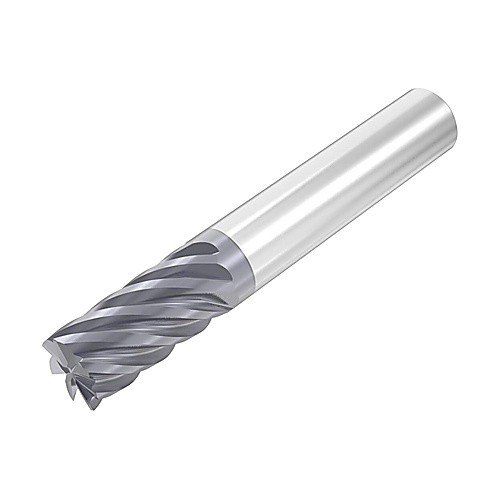

S738-0.250-D3-C003.0-Z7
SQ End Mill; 1/4″ Dia. × 3/4″ LOC × 1/4″ Shank Dia. × 2-1/2″ OAL ; 0.003″ RE ; 7 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1/4″ | Flute Helix Angle (FHA) | 38 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 3/4″ | Applicable Material | | Super-Alloys / Titanium | |
| Overall Length (OAL) | 2-1/2″ | Corner Chamfer Width (CHW) | 0.003″ |
| Cutting Edge Material | Carbide | Tool Type | Non-Center Cutting |
| Coating | AlTiN | Decimal Equivalent | 0.25″ |
| Flute Count (NOF) | 7 | Corner Radius (RE) / Chamfer Width (CHW) | 0.003″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.071
