ARX35R142SA12S INDX EM

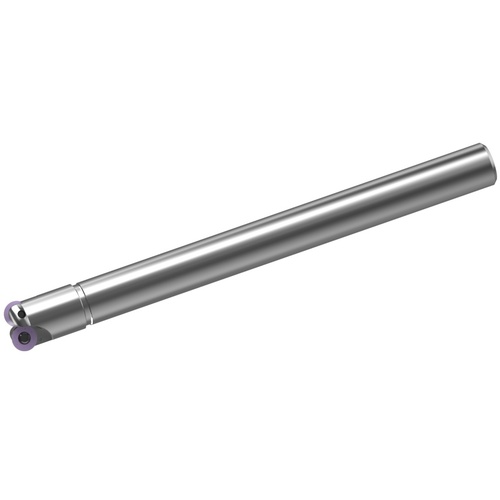

Indexable End Mill; 7 mm Dia. × 3.5 mm LOC × 12 mm Shank Dia. ; 2 FL ; Series ARX
| Cutting Diameter (DC/DCX) | 7 mm | Functional Length (LF) | 140 mm |
| Cutting Diameter (DC) | 7 mm | Flute Count (NOF) | 2 |
| Cutting Item Count (CICT) | 2 | Corner Radius (RE) | 3.5 mm |
| Depth of Cut Maximum (APMX) | 3.5 mm | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 90 Degrees | Series/List # | ARX |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Measurement Type | Metric |
| Head Length (LH) | 20 mm | Cutting Diameter Maximum (DCX) | 14 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.999
