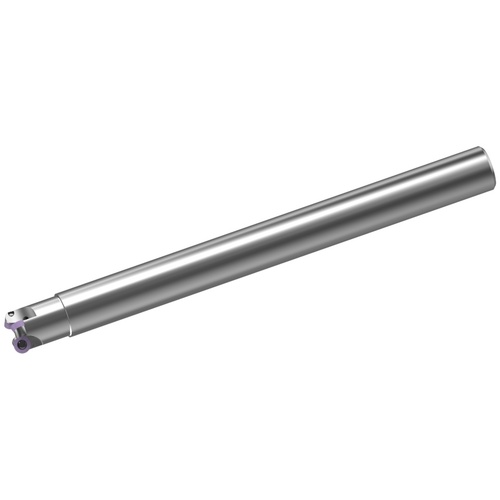

ARX30R163SA16S INDX EM
Indexable End Mill; 10 mm Dia. × 3 mm LOC × 16 mm Shank Dia. ; 3 FL ; Series ARX
| Cutting Diameter (DC/DCX) | 10 mm | Functional Length (LF) | 180 mm |
| Cutting Diameter (DC) | 10 mm | Flute Count (NOF) | 3 |
| Cutting Item Count (CICT) | 3 | Corner Radius (RE) | 3 mm |
| Depth of Cut Maximum (APMX) | 3 mm | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 21.25 Degrees | Series/List # | ARX |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Measurement Type | Metric |
| Head Length (LH) | 20 mm | Cutting Diameter Maximum (DCX) | 16 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.999
