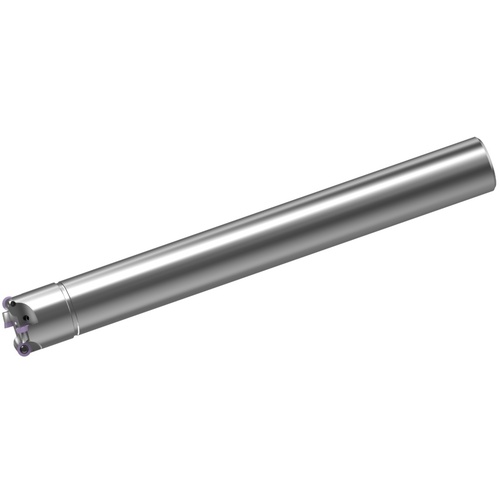

ARX25R224SA20S INDX EM
Indexable End Mill; 17 mm Dia. × 2.5 mm LOC × 20 mm Shank Dia. ; 4 FL ; Series ARX
| Cutting Diameter (DC/DCX) | 17 mm | Functional Length (LF) | 180 mm |
| Cutting Diameter (DC) | 17 mm | Flute Count (NOF) | 4 |
| Cutting Item Count (CICT) | 4 | Corner Radius (RE) | 2.5 mm |
| Depth of Cut Maximum (APMX) | 2.5 mm | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 7.94 Degrees | Series/List # | ARX |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Measurement Type | Metric |
| Head Length (LH) | 20 mm | Cutting Diameter Maximum (DCX) | 22 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.999
