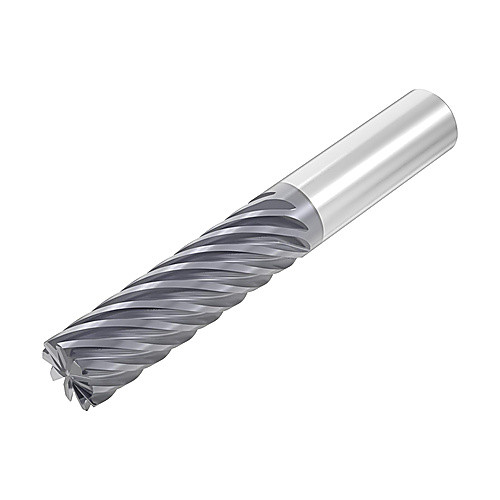

S938R-0.750-D4-R060.0-Z9 ALTIN
SQ End Mill; 3/4″ Dia. × 3-1/4″ LOC × 3/4″ Shank Dia. × 6″ OAL ; 9 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 3/4″ | Flute Helix Angle (FHA) | 38 Degrees |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 3-1/4″ | Applicable Material | | Super-Alloys / Titanium | |
| Overall Length (OAL) | 6″ | Corner Radius (RE) | 0.06″ |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | AlTiN | Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 9 | Corner Radius (RE) / Chamfer Width (CHW) | 0.06″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.16
