EPNDI-C10 500-1.0C500F3.5

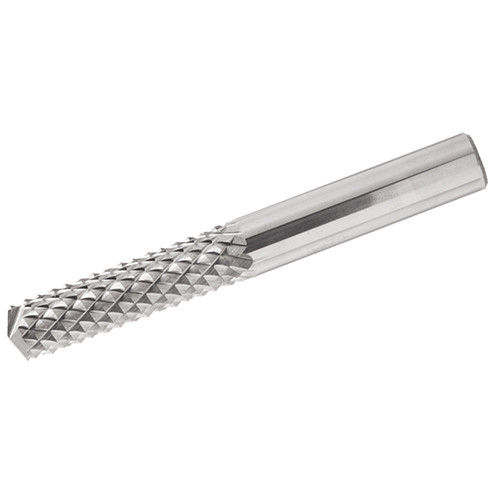

SQ End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 3-1/2″ OAL ; 10 FL ; Carbide ; Uncoated

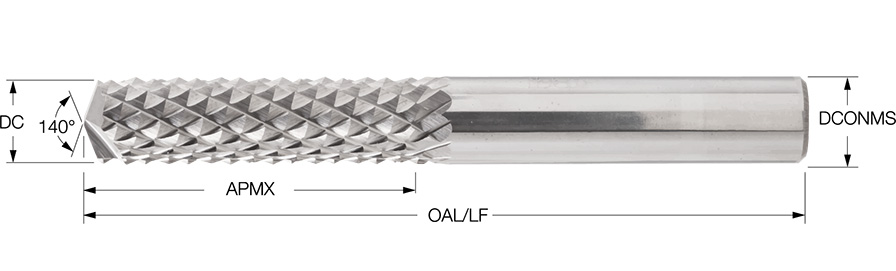

| Cutting Diameter (DC) | 1/2″ | Grade | IC02 |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Tool Type | Solid Carbide Roughers |
| Depth of Cut Maximum (APMX) | 1″ | Maximum Feed per Tooth (fz(max)) | 0.0031 ″/tooth |
| Overall Length (OAL) | 3-1/2″ | Minimum Feed per Tooth (fz(min)) | 0.0008 ″/tooth |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | Uncoated | Style | Solid Carbide Roughers |
| Flute Count (NOF) | 10 | Decimal Equivalent | 0.5″ |
| Shank Type | Round | Measurement Type | Inch |
| End Shape | Square | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Cutting Diameter Tolerance | e8 |
| Application | | Drill Mill | Edging | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Solid carbide endmill with special cutting edges for drill mill operations, for machining of different kind of composite materials. Enables application of high feed and speed due to excellent chip and heat disposal. | Country of Origin | Israel |
Shipping Info
Package Weight
0.343
