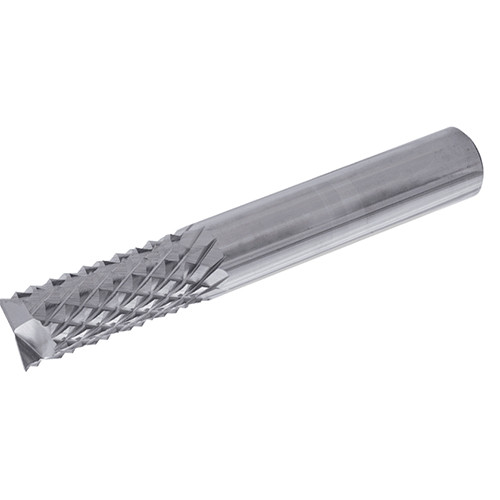

EPNCI-C10 250-750C250F2.5 IC02
Solid carbide endmill with special cutting edges, for machining different composite materials at high stock removal rartes.Enables application of high feed and speed due to excellent chip and heat disposal.

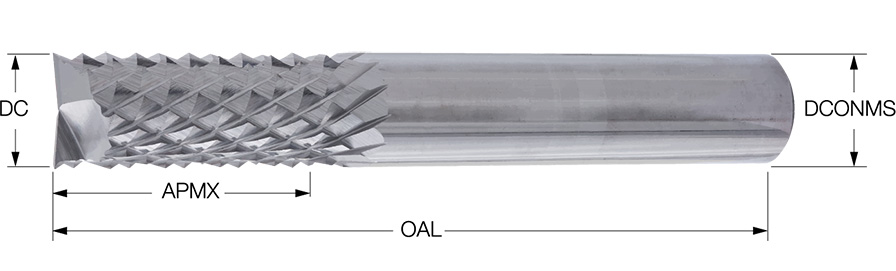

| Cutting Diameter (DC) | 1/4″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Grade | IC02 |
| Depth of Cut Maximum (APMX) | 3/4″ | Tool Type | Solid Carbide Roughers |
| Overall Length (OAL) | 2″ | Maximum Feed per Tooth (fz(max)) | 0.0031 ″/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.0008 ″/tooth |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 10 | Body Material | Carbide |
| Shank Type | Round | Style | Solid Carbide Roughers |
| End Shape | Corner Radius | Decimal Equivalent | 0.25″ |
| Usable Length (LU) | 3/4″ | Measurement Type | Inch |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Counter Boring | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Cutting Diameter Tolerance | e8 |
| Corner Radius (RE) | 0″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | Solid carbide endmill with special cutting edges, for machining different composite materials at high stock removal rartes.Enables application of high feed and speed due to excellent chip and heat disposal. | Country of Origin | Israel |
Shipping Info
Package Weight
0.066
