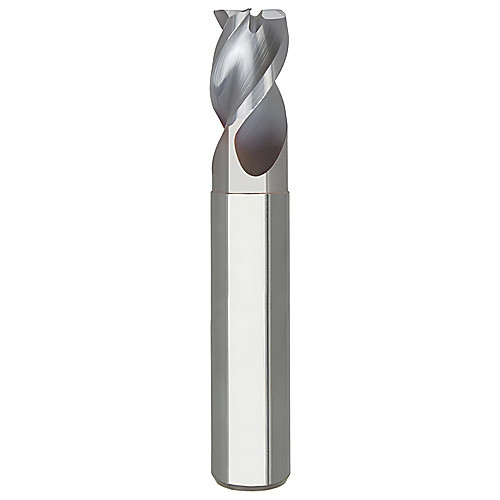

AN340-0.500-E3-R020.0-Z3 TICN
SQ End Mill; 1/2″ Dia. × 5/8″ LOC × 1/2″ Shank Dia. × 5″ OAL ; 0.02″ RE ; 3 FL ; Carbide ; TiCN
| Cutting Diameter (DC) | 1/2″ | Flute Helix Angle (FHA) | 40 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 5/8″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 5″ | Corner Radius (RE) | 0.02″ |
| Cutting Edge Material | Carbide | Tool Type | Center Cut |
| Coating | TiCN | Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 3 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.45
