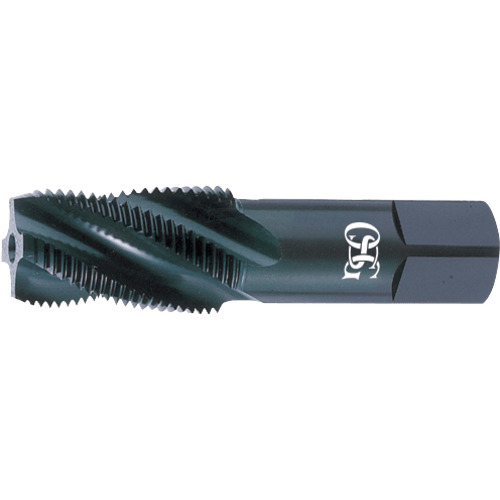

1/4-18 NPT EXOPIPE TIN
Pipe Tap; 1/4″ - 18 × 2-7/16″ OAL × 1.091″ LU ; HSSCo ; TiN ; Series 308
| Thread Diameter Size (TDZ) | 1/4″ | Applicable Material | | Steel | Stainless Steel | |
| Threads per Inch (TPI) | 18 | Chamfer | 2.5P |
| Thread Standard | NPT | Coating | TiN |
| Usable Length (LU) | 1.091″ | Cutting Edge Material | HSSCo |
| Flute Helix Angle (FHA) | 15 Degrees | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Series/List # | 308 |
| Overall Length (OAL) | 2-7/16″ | Thread Size | 1/4″ - 18 |
| Thread Cutting Part Length (THL) | 1-1/16″ |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
3.85000
Package Width
.90000
Package Height
.85000
Package Weight
0.13
