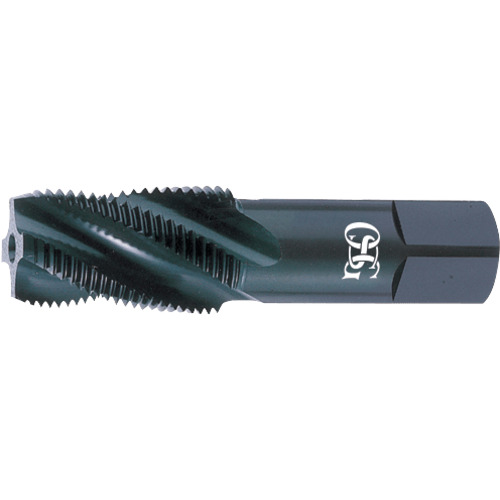

1/16-27 NPTF HS SP FL
| Thread Diameter Size (TDZ) | 1/16″ | Flute Type | Spiral |
| Threads per Inch (TPI) | 27 | Applicable Material | | Steel | Stainless Steel | |
| Thread Standard | NPTF | Chamfer | 2.5P |
| Usable Length (LU) | 0.688″ | Coating | Black Oxide |
| Flute Count (NOF) | 4 | Cutting Edge Material | HSS |
| Overall Length (OAL) | 2-1/8″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 5/8″ | Series/List # | 318 |
| Connection Diameter Machine Side (DCONMS) | 0.312″ | Thread Size | 1/16″ - 27 |
Product Features
| Remarks | •EXOPIPE •For 300 Stainless Steel Developed especially for tapping stainless steel pipe fittings. •Available in OSG steam oxide finish only | Country of Origin | Mexico |
Shipping Info
Package Length
3.80000
Package Width
.70000
Package Height
.65000
Package Weight
0.045
