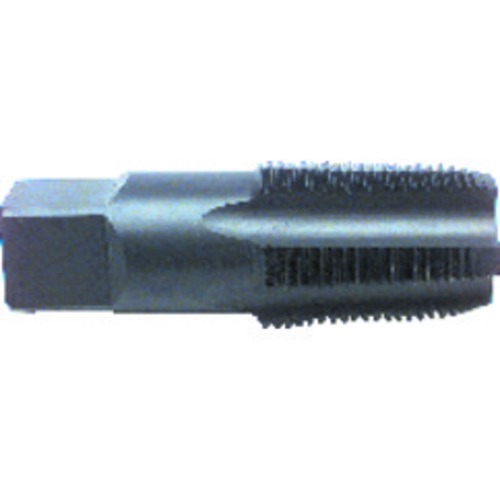

2133 2″-11-1/2 NPT 7FL
Pipe Tap; 2″ - 11.5 × 4-1/2″ OAL × 1-3/4″ LU × 1-7/8″ Shank Dia. ; HSS ; Black Oxide ; Series 2133
| Tool Type | Taper | Coolant Supply Property (CSP) | External |
| Thread Diameter Size (TDZ) | 2″ | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 11.5 | Applicable Material | | Cast Iron | |
| Thread Standard | NPT | Chamfer | 2P-3.5P |
| Usable Length (LU) | 1-3/4″ | Coating | Black Oxide |
| Flute Count (NOF) | 7 | Cutting Edge Material | HSS |
| Overall Length (OAL) | 4-1/2″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 1-3/4″ | Series/List # | 2133 |
| Connection Diameter Machine Side (DCONMS) | 1-7/8″ | Thread Size | 2″ - 11.5 |
Product Features
| Remarks | •Taper Pipe Taps For Cast Iron •Taper pipe taps for Cast Iron feature specific geometry for tapping materials that produce small or powdery chips. •Recommended for cast iron, cast brass, and other brass materials and non-metals that produce small or powdery chips. •NPT threads require the use thread sealant to ensure tight seal. •Steam Oxide Over Nitride increases wear resistance, reduces friction, reduces galling and chip welding, improves chip flow and increases tap lubricant retention. | Country of Origin | USA |
Shipping Info
Package Length
3.12500
Package Width
2.00000
Package Height
2.00000
Package Weight
3.57
