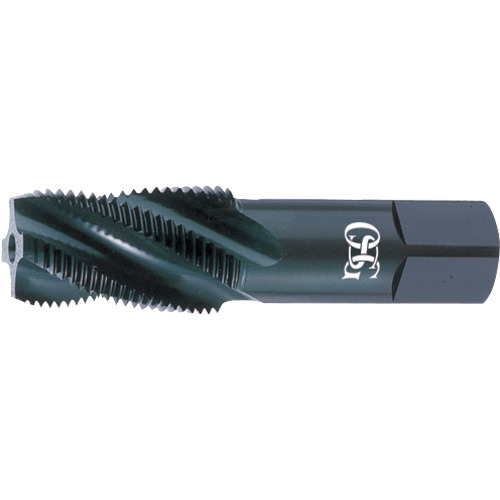

1-11-1/2 Dia-5 FL-HSS-Steam Oxide Standard Spiral Flute Pipe Tap
| Thread Diameter Size (TDZ) | 1″ | Flute Type | Spiral |
| Threads per Inch (TPI) | 11.5 | Applicable Material | | Steel | Stainless Steel | |
| Thread Standard | NPT | Chamfer | 2.5P |
| Usable Length (LU) | 1.752″ | Coating | Black Oxide |
| Flute Count (NOF) | 5 | Cutting Edge Material | HSS |
| Overall Length (OAL) | 3-3/4″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 1-3/4″ | Series/List # | 308 |
| Connection Diameter Machine Side (DCONMS) | 1-1/8″ | Thread Size | 1″ - 11.5 |
Product Features
| Remarks | •EXOPIPE •For 300 Stainless Steel Developed especially for tapping stainless steel pipe fittings. •Available in OSG steam oxide finish only | Country of Origin | Mexico |
Shipping Info
Package Length
3.90000
Package Width
1.50000
Package Height
1.50000
Package Weight
0.85
