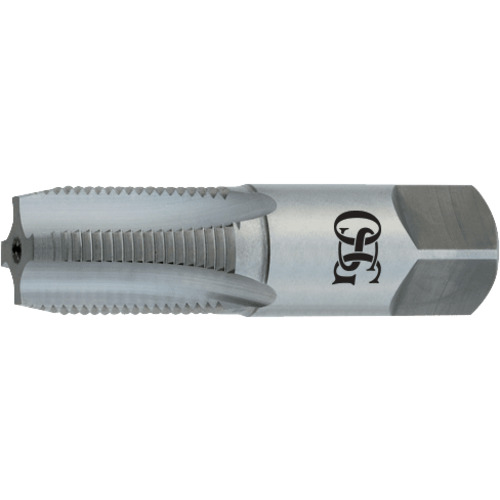

1/2-14 Dia-4 FL-HSS Bright Standard Straight Pipe Tap
| Thread Diameter Size (TDZ) | 1/2″ | Flute Type | Straight |
| Threads per Inch (TPI) | 14 | Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Thread Standard | NPS | Chamfer | 4P |
| Usable Length (LU) | 1.374″ | Coating | Uncoated |
| Flute Count (NOF) | 4 | Cutting Edge Material | HSS |
| Overall Length (OAL) | 3-1/8″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 1-3/8″ | Series/List # | 109 |
| Connection Diameter Machine Side (DCONMS) | 0.688″ | Thread Size | 1/2″ - 14 |
Product Features
| Remarks | •Straight Pipe Taps •Ground Thread High Speed Steel NPS & NPSF | Country of Origin | Mexico |
Shipping Info
Package Length
3.35000
Package Width
1.20000
Package Height
1.15000
Package Weight
0.267
