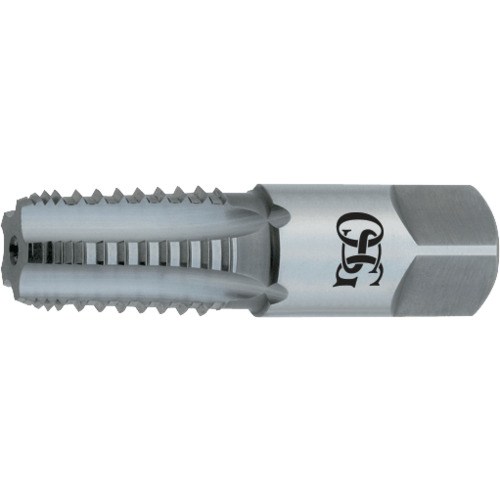

1/8-27SM HS NPT INT TAP
Pipe Tap; 1/8″ - 27 × 2-1/8″ OAL × 0.752″ LU × 0.313″ Shank Dia. ; HSS ; Uncoated ; Series 108G

| Tool Type | Taper | Flute Type | Interrupted |
| Thread Diameter Size (TDZ) | 1/8″ | Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 27 | Chamfer | 2.5P |
| Thread Standard | NPT | Coating | Uncoated |
| Usable Length (LU) | 0.752″ | Cutting Edge Material | HSS |
| Flute Count (NOF) | 5 | Measurement Type | Inch |
| Overall Length (OAL) | 2-1/8″ | Special Feature | Interrupted Thread |
| Thread Cutting Part Length (THL) | 3/4″ | Series/List # | 108G |
| Connection Diameter Machine Side (DCONMS) | 0.313″ | Thread Size | 1/8″ - 27 |
Product Features
| Remarks | •Taper Pipe Taps Ground Thread
•High Speed Steel NPT/ANPT, NPTF | Country of Origin | Brazil |
Shipping Info
Package Length
3.60000
Package Width
.60000
Package Height
.55000
Package Weight
0.075
