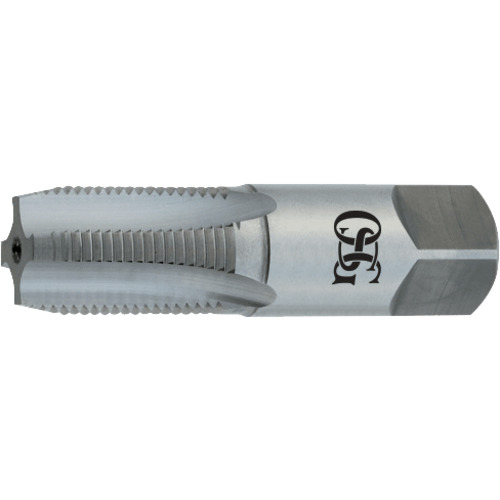

1-11-1/2 Dia-4 FL-HSS Bright Standard Straight Pipe Tap
| Thread Diameter Size (TDZ) | 1″ | Flute Type | Straight |
| Threads per Inch (TPI) | 11.5 | Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Thread Standard | NPS | Chamfer | 4P |
| Usable Length (LU) | 1.752″ | Coating | Uncoated |
| Flute Count (NOF) | 5 | Cutting Edge Material | HSS |
| Overall Length (OAL) | 3-3/4″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 1-3/4″ | Series/List # | 109 |
| Connection Diameter Machine Side (DCONMS) | 1-1/8″ | Thread Size | 1″ - 11.5 |
Product Features
| Remarks | •Straight Pipe Taps •Ground Thread High Speed Steel NPS & NPSF | Country of Origin | Mexico |
Shipping Info
Package Length
3.90000
Package Width
1.65000
Package Height
1.55000
Package Weight
0.915
