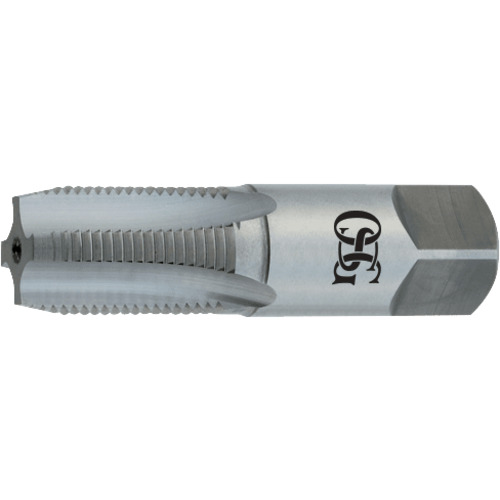

1/8-27 SM SHK 4F NPSF
Pipe Tap; 1/8″ - 27 × 2-1/8″ OAL × 0.752″ LU × 0.313″ Shank Dia. ; HSS ; Uncoated ; Series 109

| Thread Diameter Size (TDZ) | 1/8″ | Flute Type | Straight |
| Threads per Inch (TPI) | 27 | Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Thread Standard | NPSF | Chamfer | 4P |
| Usable Length (LU) | 0.752″ | Coating | Uncoated |
| Flute Count (NOF) | 4 | Cutting Edge Material | HSS |
| Overall Length (OAL) | 2-1/8″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 3/4″ | Series/List # | 109 |
| Connection Diameter Machine Side (DCONMS) | 0.313″ | Thread Size | 1/8″ - 27 |
Product Features
| Remarks | •Straight Pipe Taps
•Ground Thread High Speed Steel NPS & NPSF | Country of Origin | Mexico |
Shipping Info
Package Length
3.75000
Package Width
.75000
Package Height
.65000
Package Weight
0.055
