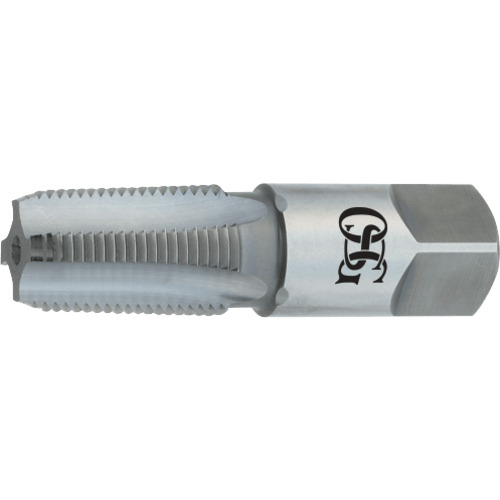

1/16-27 4FL NPT HS TAPER
Pipe Tap; 1/16″ - 27 × 2-1/8″ OAL × 0.688″ LU × 0.312″ Shank Dia. ; HSS ; Uncoated ; Series 108
| Tool Type | Taper | Connection Diameter Machine Side (DCONMS) | 0.312″ |
| Thread Diameter Size (TDZ) | 1/16″ | Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 27 | Chamfer | 2.5P |
| Thread Standard | NPT | Coating | Uncoated |
| Usable Length (LU) | 0.688″ | Cutting Edge Material | HSS |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Overall Length (OAL) | 2-1/8″ | Series/List # | 108 |
| Thread Cutting Part Length (THL) | 11/16″ | Thread Size | 1/16″ - 27 |
Product Features
| Remarks | •Taper Pipe Taps Ground Thread •High Speed Steel NPT/ANPT, NPTF | Country of Origin | Mexico |
Shipping Info
Package Length
3.70000
Package Width
.70000
Package Height
.60000
Package Weight
0.05
