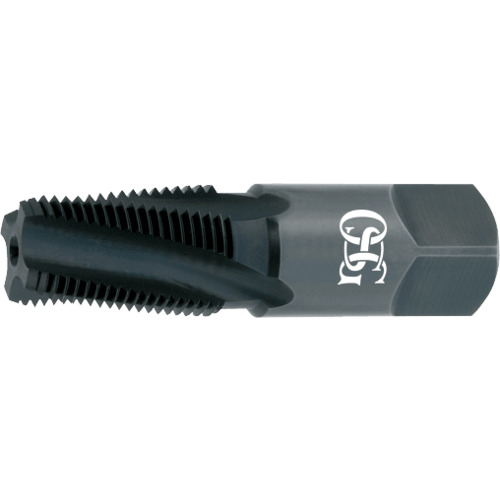

1/8-27 (lg. shk.) Dia-4 FL-HSS-Bright Spiral Flute Taper Pipe Tap
Pipe Tap; 1/8″ - 27 × 2-1/8″ OAL × 0.751″ LU × 0.437″ Shank Dia. ; HSS ; Uncoated ; Series S125
| Thread Diameter Size (TDZ) | 1/8″ | Flute Type | Spiral |
| Threads per Inch (TPI) | 27 | Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Thread Standard | NPT | Chamfer | 1.5P-2P |
| Usable Length (LU) | 0.751″ | Coating | Uncoated |
| Flute Count (NOF) | 4 | Cutting Edge Material | HSS |
| Overall Length (OAL) | 2-1/8″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 3/4″ | Series/List # | S125 |
| Connection Diameter Machine Side (DCONMS) | 0.437″ | Thread Size | 1/8″ - 27 |
Product Features
| Remarks | •Spiral Flute Taper Pipe Taps •Ground Thread High Speed Steel NPT & NPTF •Spiral flute Taper Pipe Taps offer the most effectiveness in those applications where long stringy chips are produced. •The spiral flutes create a lifting action of the chips from the hole being tapped. | Country of Origin | Mexico |
Shipping Info
Package Length
3.80000
Package Width
.75000
Package Height
.65000
Package Weight
0.07
