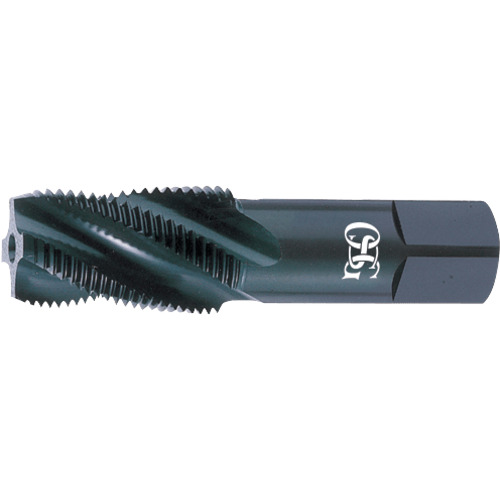

3/8-18 Dia-4 FL-HSS-Steam Oxide Standard Spiral Flute Pipe Tap
| Thread Diameter Size (TDZ) | 3/8″ | Flute Type | Spiral |
| Threads per Inch (TPI) | 18 | Applicable Material | | Steel | Stainless Steel | |
| Thread Standard | NPTF | Chamfer | 2.5P |
| Usable Length (LU) | 1.09″ | Coating | Black Oxide |
| Flute Count (NOF) | 4 | Cutting Edge Material | HSS |
| Overall Length (OAL) | 2-9/16″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 1-1/16″ | Series/List # | 318 |
| Connection Diameter Machine Side (DCONMS) | 0.7″ | Thread Size | 3/8″ - 18 |
Product Features
| Remarks | •EXOPIPE •For 300 Stainless Steel Developed especially for tapping stainless steel pipe fittings. •Available in OSG steam oxide finish only | Country of Origin | Mexico |
Shipping Info
Package Length
3.35000
Package Width
1.00000
Package Height
.90000
Package Weight
0.2
