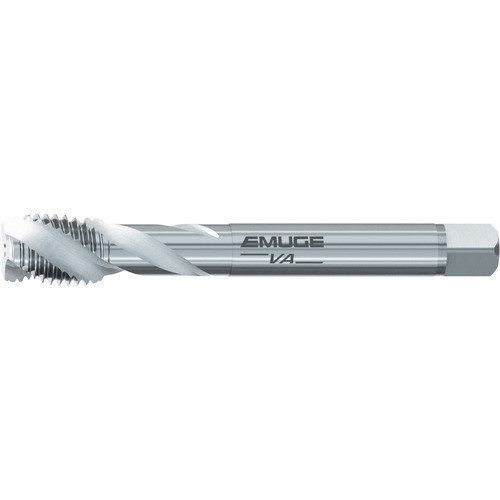

Pipe Tap; 3/4″ -14 × 140 mm OAL ; HSSE ; Bright ; G ; Series 503000
| Tool Type | Pipe Tap | Cutting Direction (HAND) | Right Hand |
| Thread Diameter Size (TDZ) | 3/4″ | Applicable Material | Steel | Stainless Steel |
| Threads per Inch (TPI) | 14 | Chamfer | 2P-3P |
| Thread Standard | G(BSP) | Coating | Bright |
| Flute Helix Angle (FHA) | 35 Degrees | Cutting Edge Material | HSSE |
| Overall Length (OAL) | 140 mm | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Standard | DIN |
| Flute Type | Spiral | Series/List # | 503000 |
| Coolant Supply Property (CSP) | External | Thread Size | 3/4″ - 14 |
Product Features
| Remarks | • Enorm - Steel long length Whitworth pipe tap for blind hole applications. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
.9900
