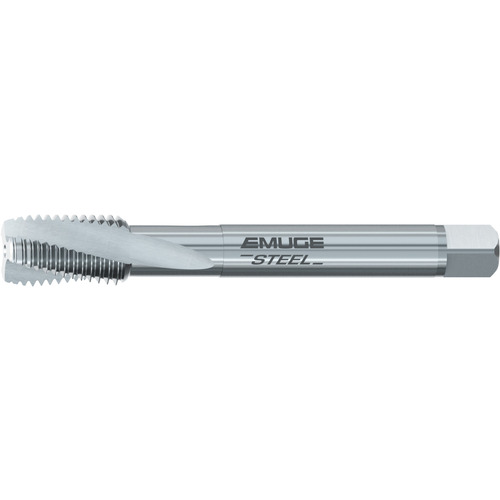

Pipe Tap; 1-1/4″ -11 × 170 mm OAL ; HSSE ; Bright ; G ; Series 451000
| Tool Type | Pipe Tap | Cutting Direction (HAND) | Right Hand |
| Thread Diameter Size (TDZ) | 1-1/4″ | Applicable Material | | Steel | Stainless Steel | |
| Threads per Inch (TPI) | 11 | Chamfer | 2P-3P |
| Thread Standard | G(BSP) | Coating | Uncoated |
| Flute Helix Angle (FHA) | 15 Degrees | Cutting Edge Material | HSSE |
| Overall Length (OAL) | 170 mm | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Standard | DIN |
| Flute Type | Spiral | Series/List # | 451000 |
| Coolant Supply Property (CSP) | External | Thread Size | 1-1/4″ - 11 |
Product Features
| Remarks | • Rekord D-Steel long length, slow spiral Whitworth pipe tap for blind hole applications. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
.9900
