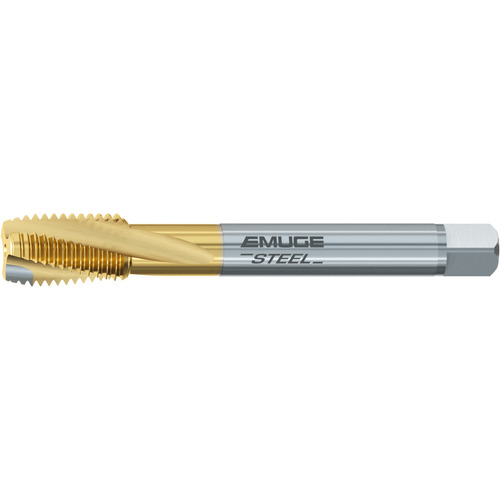

Pipe Tap; 1/4″ -19 × 100 mm OAL ; HSSE ; TiN ; G ; Series 401400
| Tool Type | Pipe Tap | Cutting Direction (HAND) | Right Hand |
| Thread Diameter Size (TDZ) | 1/4″ | Applicable Material | Steel | Stainless Steel |
| Threads per Inch (TPI) | 19 | Chamfer | 2P-3P |
| Thread Standard | G(BSP) | Coating | TiN |
| Flute Helix Angle (FHA) | 15 Degrees | Cutting Edge Material | HSSE |
| Overall Length (OAL) | 100 mm | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 11 mm | Standard | DIN |
| Flute Type | Spiral | Series/List # | 401400 |
| Coolant Supply Property (CSP) | External | Thread Size | 1/4″ - 19 |
Product Features
| Remarks | • Rekord DF tap is a slow spiral tap with an additional "F" style lip correction that helps create tightly rolled chip formations in blind hole applications. • Longer tool life and more consistent thread quality. • Chipbreaker point geometry eliminates chip bird nesting | Country of Origin | Germany |
Shipping Info
Package Weight
.9900
