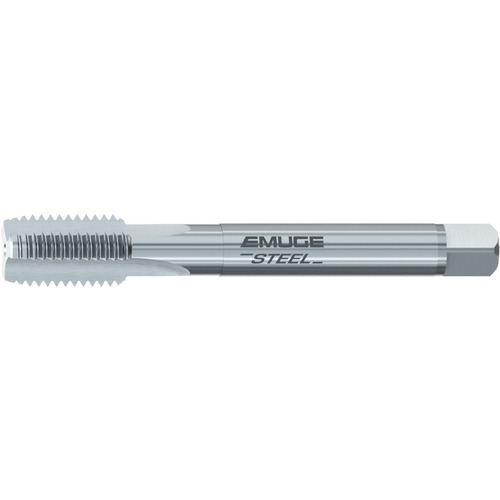

Pipe Tap; 1-5/8″ -11 × 190 mm OAL ; HSSE ; Bright ; G ; Series 0101001
| Tool Type | Pipe Tap | Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Thread Diameter Size (TDZ) | 1-5/8″ | Chamfer | 2P-3P |
| Threads per Inch (TPI) | 11 | Coating | Uncoated |
| Thread Standard | G(BSP) | Cutting Edge Material | HSSE |
| Overall Length (OAL) | 190 mm | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Standard | DIN |
| Flute Type | Straight | Series/List # | C0101001 |
| Coolant Supply Property (CSP) | External | Thread Size | 1-5/8″ - 11 |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Remarks | • Rekord A-Steel straight flute Whitworth pipe tap for through or blind hole applications in steel alloys and copper. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
.9900
