1/16-27 NPT 3FX INT ANPT

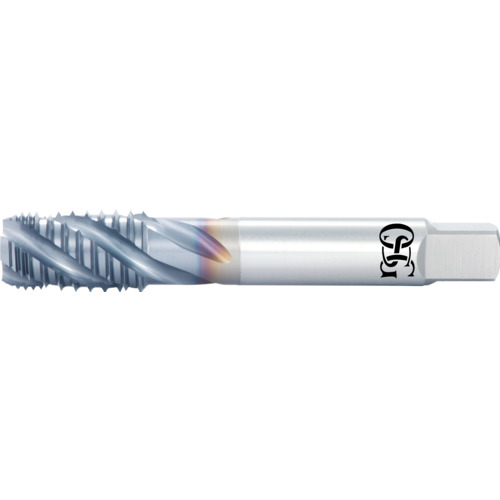

Pipe Tap; 1/16″ - 27 × 3.543″ OAL × 0.313″ Shank Dia. ; HSSE ; Vanadium ; Series 16570
| Thread Diameter Size (TDZ) | 1/16″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 27 | Chamfer | 2.5P |
| Thread Standard | NPT | Coating | Vanadium |
| Flute Count (NOF) | 3 | Cutting Edge Material | HSSE |
| Overall Length (OAL) | 3.543″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 0.689″ | Square Size | 0.234″ |
| Connection Diameter Machine Side (DCONMS) | 0.313″ | Series/List # | 16570 |
| Flute Type | Spiral | Thread Size | 1/16″ - 27 |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.08
