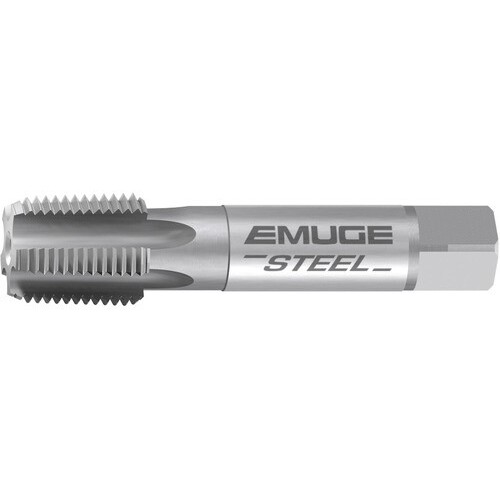

Pipe Tap; 1/8″ -28 × 63 mm OAL ; HSSE ; Bright ; BSPT
| Tool Type | Pipe Tap | Cutting Direction (HAND) | Right Hand |
| Thread Diameter Size (TDZ) | 1/8″ | Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 28 | Chamfer | 2P-3P |
| Thread Standard | BSPT | Coating | Uncoated |
| Overall Length (OAL) | 63 mm | Cutting Edge Material | HSSE |
| Thread Cutting Part Length (THL) | 13 mm | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 7 mm | Standard | DIN |
| Flute Type | Straight | Series/List # | A0181000 |
| Coolant Supply Property (CSP) | External | Thread Size | 1/8″ - 28 |
Product Features
| Remarks | • Rekord-KEG-Steel straight flute, Rc (BSPT) tapered Whitworth pipe tap for blind hole applications in steel, cast iron and cast aluminum alloys. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.048
