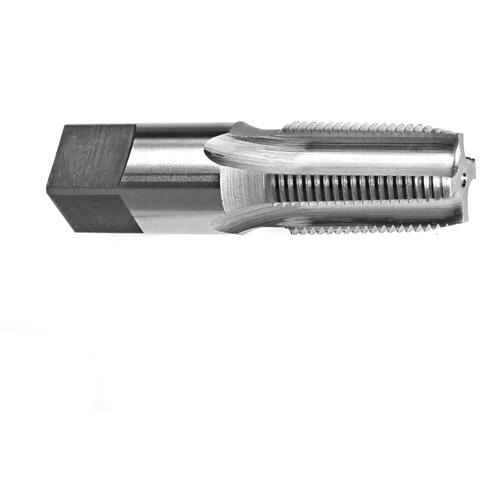

1/4-18 PTF SAE SHORT 4FL 1-N TREAT 0-2 DEG NEG RAKE GRD THD DRYSEAL CI TAPER PIPE TAPS 121DSCI (CI47009)
| Tool Type | Pipe Tap | Cutting Direction (HAND) | Right Hand |
| Thread Diameter Size (TDZ) | 1/4″ | Chamfer | Plug |
| Threads per Inch (TPI) | 18 | Coating | Uncoated |
| Thread Standard | PTF | Cutting Edge Material | HSS |
| Usable Length (LU) | 1-1/16″ | Shank Type | Round w/ Drive Square |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Overall Length (OAL) | 2-7/16″ | Flute Length | 1-1/16″ |
| Thread Cutting Part Length (THL) | 1-1/16″ | Square Size | 0.421″ × 7/16″ |
| Connection Diameter Machine Side (DCONMS) | 0.421″ | Series/List # | 121DSCI |
| Flute Type | Straight | Thread Size | 1/4″ - 18 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.187
