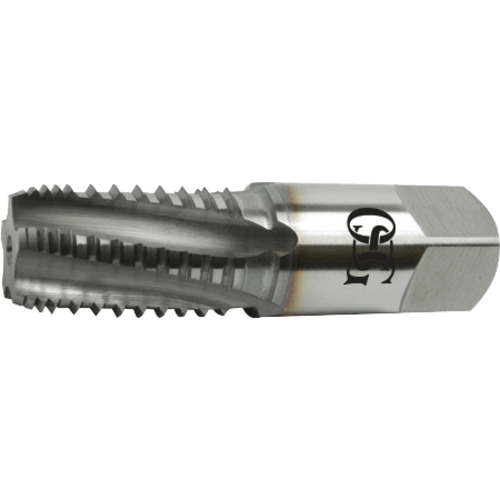

OSG 1/4-18 NPT 3FX
Pipe Tap; 1/4″ - 18 × 2-7/16″ OAL × 1.062″ LU ; HSSCo ; TiCN ; Series 12053
| Thread Diameter Size (TDZ) | 1/4″ | Flute Type | Spiral |
| Threads per Inch (TPI) | 18 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | |
| Thread Standard | NPT | Chamfer | 2.5P |
| Usable Length (LU) | 1.062″ | Coating | TiCN |
| Flute Helix Angle (FHA) | 10 Degrees | Cutting Edge Material | HSSCo |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Overall Length (OAL) | 2-7/16″ | Series/List # | 12053 |
| Thread Cutting Part Length (THL) | 1-1/16″ | Thread Size | 1/4″ - 18 |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
2.50000
Package Width
.90000
Package Height
.80000
Package Weight
0.12
