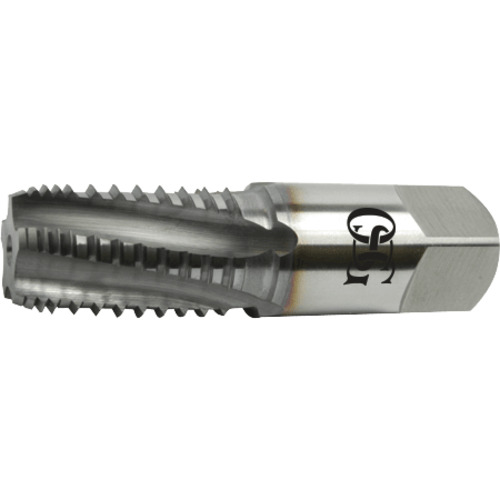

1-11-1/2 NPT 5FL INT HYPRO TICN
| Thread Diameter Size (TDZ) | 1″ | Flute Type | Spiral |
| Threads per Inch (TPI) | 11.5 | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | |
| Thread Standard | NPT | Chamfer | 2.5P |
| Usable Length (LU) | 1.751″ | Coating | TiCN |
| Flute Helix Angle (FHA) | 10 Degrees | Cutting Edge Material | HSSCo |
| Flute Count (NOF) | 5 | Measurement Type | Inch |
| Overall Length (OAL) | 3-3/4″ | Series/List # | 12053 |
| Thread Cutting Part Length (THL) | 1-3/4″ | Thread Size | 1″ - 11.5 |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
3.95000
Package Width
1.60000
Package Height
1.50000
Package Weight
0.9
