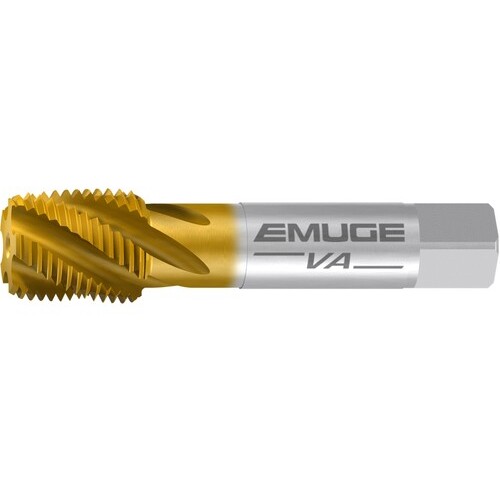

Pipe Tap; 1/8″ -27 × 2.13″ OAL ; HSSE ; TiN ; NPTF
| Tool Type | Pipe Tap | Cutting Direction (HAND) | Right Hand |
| Thread Diameter Size (TDZ) | 1/8″ | Applicable Material | | Steel | Stainless Steel | |
| Threads per Inch (TPI) | 27 | Chamfer | 2P-3P |
| Thread Standard | NPTF | Coating | TiN |
| Flute Helix Angle (FHA) | 15 Degrees | Cutting Edge Material | HSSE |
| Overall Length (OAL) | 2.13″ | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 3/4″ | Standard | ANSI |
| Connection Diameter Machine Side (DCONMS) | 0.438″ | Series/List # | AW483100 |
| Flute Type | Spiral | Thread Size | 1/8″ - 27 |
| Coolant Supply Property (CSP) | External |
Product Features
| Remarks | • Rekord KEG D-VA slow spiral style is best suited for stainless steel and steel materials. • Longer tool life and more consistent thread quality. | Country of Origin | GERMANY |
Shipping Info
Package Length
3.25000
Package Width
.25000
Package Height
.17000
Package Weight
0.999
