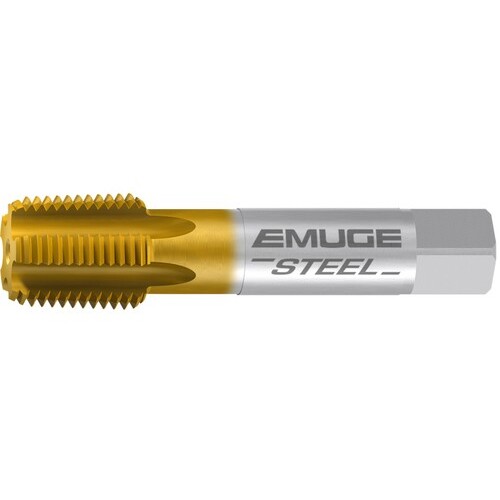

Pipe Tap; 1/8″ -27 × 2.13″ OAL ; HSSE ; TiN ; NPTF
Pipe Tap; 1/8″ - 27 × 2.13″ OAL × 0.438″ Shank Dia. ; HSSE ; TiN ; Series AW181400
| Tool Type | Pipe Tap | Cutting Direction (HAND) | Right Hand |
| Thread Diameter Size (TDZ) | 1/8″ | Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | |
| Threads per Inch (TPI) | 27 | Chamfer | 2P-3P |
| Thread Standard | NPTF | Coating | TiN |
| Overall Length (OAL) | 2.13″ | Cutting Edge Material | HSSE |
| Thread Cutting Part Length (THL) | 3/4″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.438″ | Standard | ANSI |
| Flute Type | Straight | Series/List # | AW181400 |
| Coolant Supply Property (CSP) | External | Thread Size | 1/8″ - 27 |
Product Features
| Remarks | • Rekord KEG straight flute NPT/NPTF pipe tap for through & blind hole applications in short chipping cast iron, short chipping brass also steel materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.99
