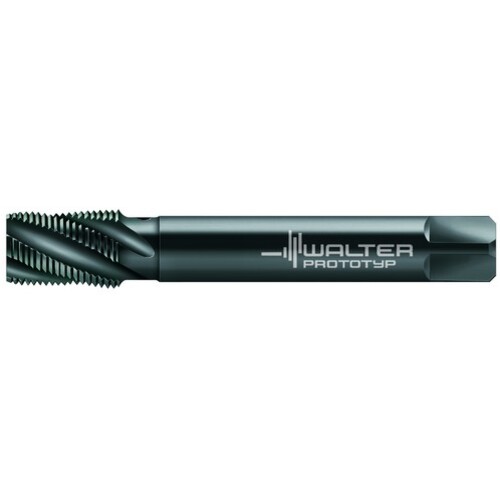

1/16-27 NPTF 3 Flute HSS VAP Pipe Tap
| Thread Diameter Size (TDZ) | 1/16″ | Coolant Supply Property (CSP) | External |
| Threads per Inch (TPI) | 27 | Cutting Direction (HAND) | Right Hand |
| Thread Standard | NPTF | Cutting Edge Material | HSS |
| Flute Helix Angle (FHA) | CW|30 Degrees | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Flute Length | 53/64″ |
| Overall Length (OAL) | 3-5/32″ | Standard | DIN|ANSI |
| Thread Cutting Part Length (THL) | 35/64″ | Thread Size | 1/16″ - 27 |
| Connection Diameter Machine Side (DCONMS) | 5/16″ |
Product Features
| Family Description | A26563-NPTF1/16 | Country of Origin | Germany |
Shipping Info
Package Weight
0.08
