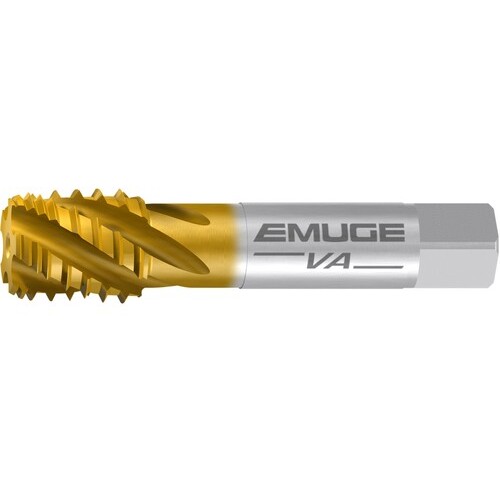

Pipe Tap; 1″ -11.5 × 3.752″ OAL ; HSSE ; TiN ; NPT
| Tool Type | Pipe Tap | Cutting Direction (HAND) | Right Hand |
| Thread Diameter Size (TDZ) | 1″ | Applicable Material | | Steel | Stainless Steel | |
| Threads per Inch (TPI) | 11.5 | Chamfer | 2P-3P |
| Thread Standard | NPT | Coating | TiN |
| Flute Helix Angle (FHA) | 15 Degrees | Cutting Edge Material | HSSE |
| Overall Length (OAL) | 3.752″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/8″ | Standard | ANSI |
| Flute Type | Spiral | Series/List # | AW493100 |
| Coolant Supply Property (CSP) | External | Thread Size | 1″ - 11.5 |
Product Features
| Remarks | • Rekord D-VA extra length, slow spiral NPT/NPTF skip tooth pipe tap for through hole applications in stainless steel and steel materials. • Longer tool life and more consistent thread quality. | Country of Origin | GERMANY |
