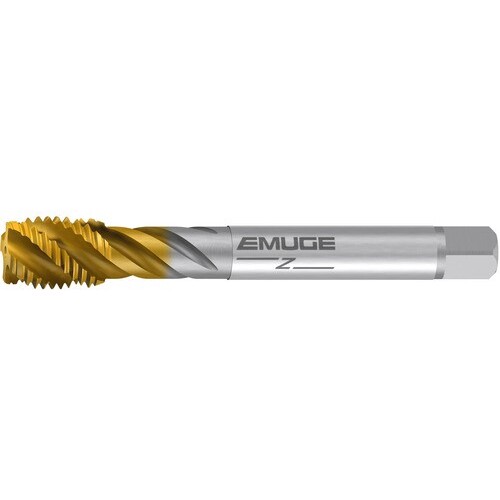

Pipe Tap; 1/4″ -19 × 100 mm OAL ; HSSE ; TiN ; G
| Tool Type | Pipe Tap | Cutting Direction (HAND) | Right Hand |
| Thread Diameter Size (TDZ) | 1/4″ | Applicable Material | | Stainless Steel | |
| Threads per Inch (TPI) | 19 | Chamfer | 1.5P-2P |
| Thread Standard | G(BSP) | Coating | TiN |
| Flute Helix Angle (FHA) | 45 Degrees | Cutting Edge Material | HSSE |
| Overall Length (OAL) | 100 mm | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 22 mm | Standard | DIN |
| Connection Diameter Machine Side (DCONMS) | 11 mm | Series/List # | C0513700 |
| Flute Type | Spiral | Thread Size | 1/4″ - 19 |
| Coolant Supply Property (CSP) | External |
Product Features
| Remarks | • Enorm Z/E long length Whitworth pipe tap for blind hole applications. • Longer tool life and more consistent thread quality. | Country of Origin | GERMANY |
Shipping Info
Package Weight
0.9999
