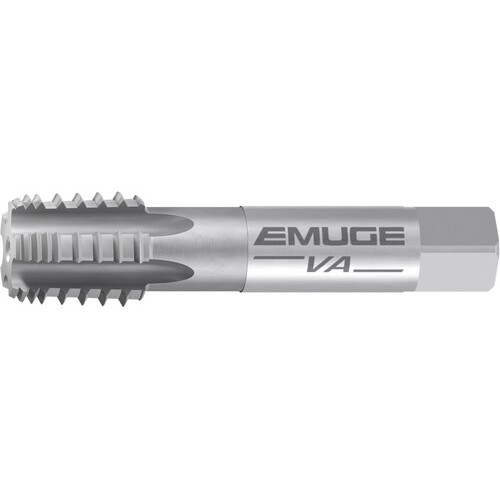

Pipe Tap; 1/8″ -27 × 2.13″ OAL ; HSSE ; Bright ; NPTF
| Tool Type | Pipe Tap | Cutting Direction (HAND) | Right Hand |
| Thread Diameter Size (TDZ) | 1/8″ | Applicable Material | | Steel | Stainless Steel | |
| Threads per Inch (TPI) | 27 | Chamfer | 2P-3P |
| Thread Standard | NPTF | Coating | Uncoated |
| Overall Length (OAL) | 2.13″ | Cutting Edge Material | HSSE |
| Thread Cutting Part Length (THL) | 3/4″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.438″ | Standard | ANSI |
| Flute Type | Straight | Series/List # | AW193000 |
| Coolant Supply Property (CSP) | External | Thread Size | 1/8″ - 27 |
Product Features
| Remarks | • Rekord KEG-VA straight flute NPT / NPTF skip tooth pipe tap for through or blind hole applications in stainless steel and steel materials. • Longer tool life and more consistent thread quality. • Interrupted thread profile reduces radial cutting forces and improved thread quality | Country of Origin | GERMANY |
Shipping Info
Package Weight
0.9999
