3/8-18 NPSF 2ENORM-Z/E

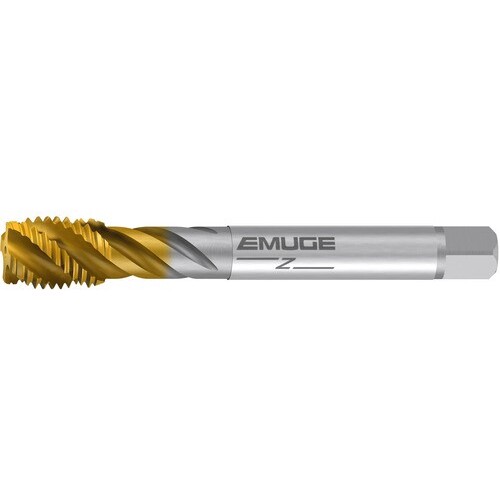

Pipe Tap; 3/8″ - 18 × 100 mm OAL × 12 mm Shank Dia. ; HSSE ; TiN ; Series C0513700
| Tool Type | Pipe Tap | Cutting Direction (HAND) | Right Hand |
| Thread Diameter Size (TDZ) | 3/8″ | Applicable Material | | Stainless Steel | |
| Threads per Inch (TPI) | 18 | Chamfer | 1.5P-2P |
| Thread Standard | NPSF | Coating | TiN |
| Flute Helix Angle (FHA) | 45 Degrees | Cutting Edge Material | HSSE |
| Overall Length (OAL) | 100 mm | Measurement Type | Inch |
| Thread Cutting Part Length (THL) | 22 mm | Standard | DIN |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Series/List # | C0513700 |
| Flute Type | Spiral | Thread Size | 3/8″ - 18 |
| Coolant Supply Property (CSP) | External |
Product Features
| Remarks | • The Enorm Z/E design is typically for blind hole threads in long chipping materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
0.99
